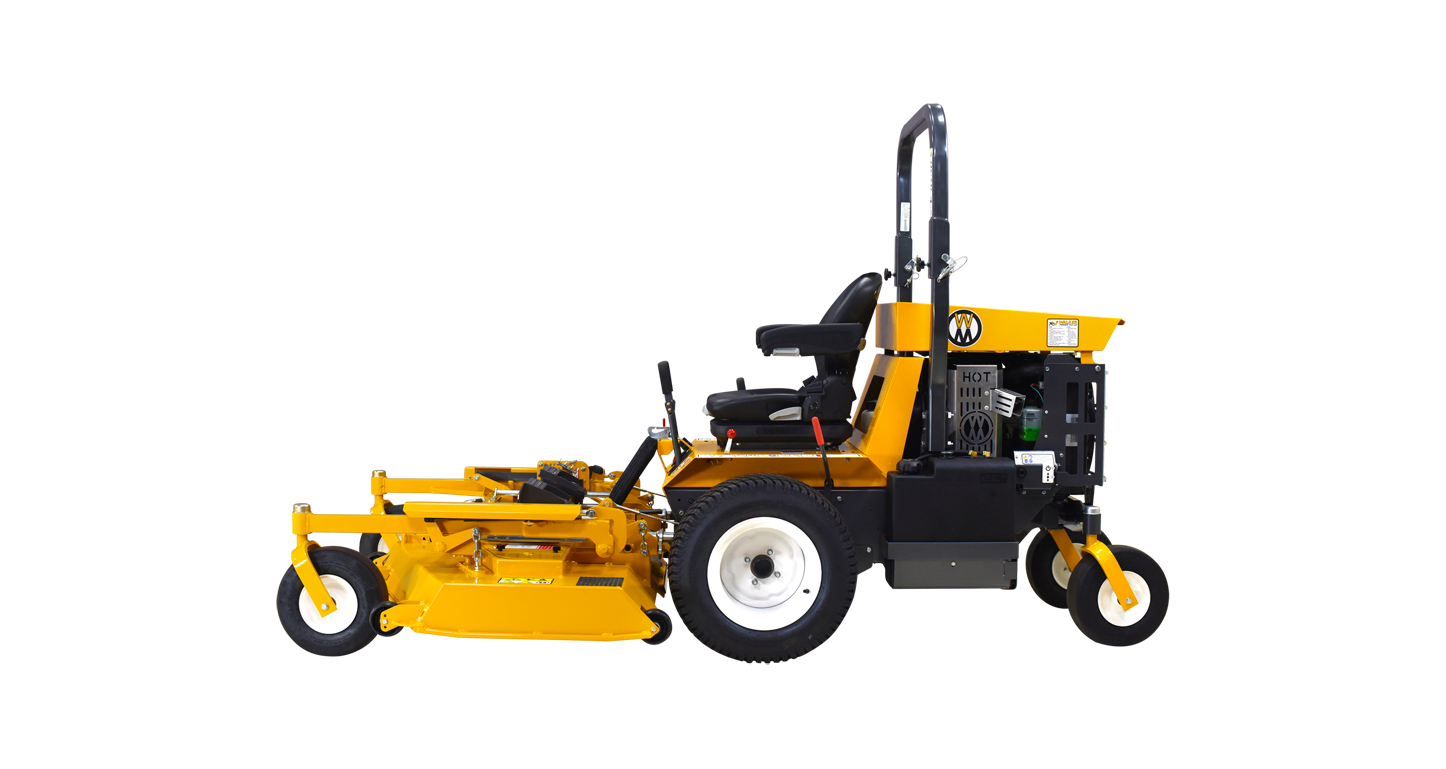

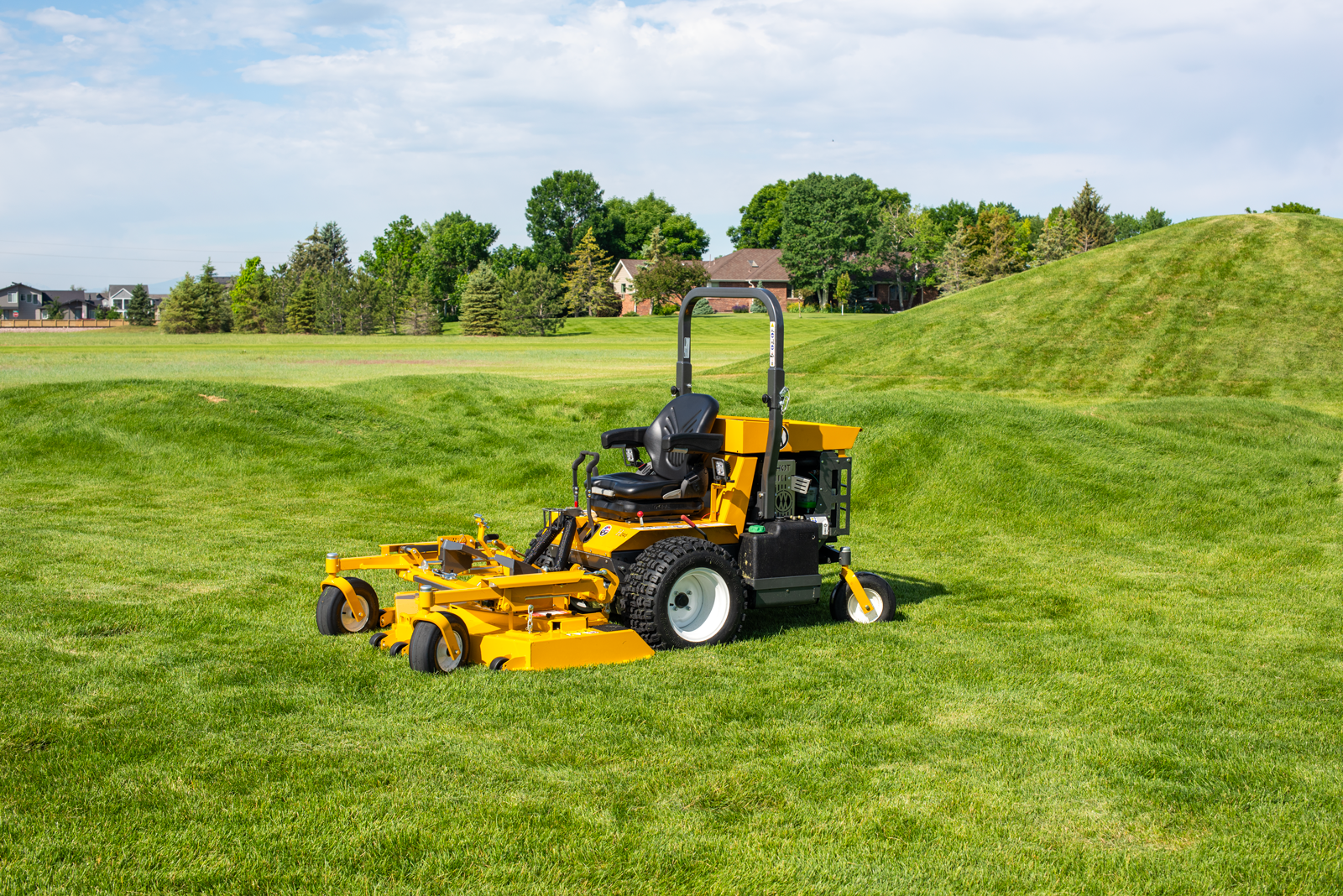

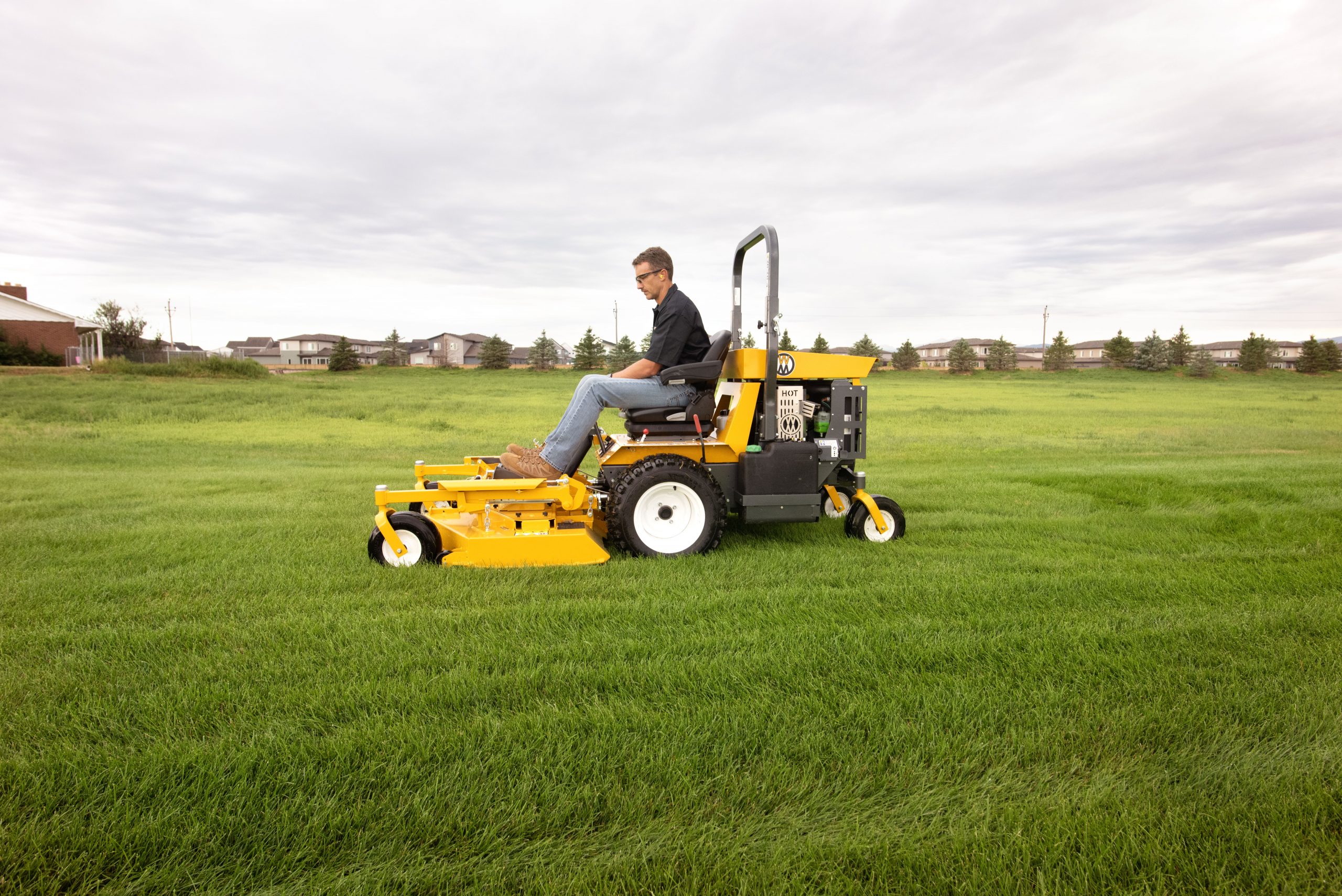

WALKER H24d

POA

NON-COLLECTION TRACTOR

For discerning operators, the H24d delivers an impressive package. Featuring a Kohler KDW1003 diesel engine with 1028 cubic centimeters of displacement, the H24d provides consistent power and smooth, quiet operation. The self-cleaning radiator, 9.4 gallon fuel capacity, and Grammer suspension seat allow for comfortable extended operation. The standard utility bed and optional add-ons make the H24d a versatile, year-round performer.

KEY FEATURES

Type: Non-Collection
Deck Options : 61” Side Discharge & 64” Rear Discharge
Power: 23.7 HP
Key Attributes: Efficient, high torque
Engine: Kohler Diesel
High Production Mowing
Popular Options & Accessories : Power Tilt-Up Kit, Light Kit, Deck Adapter Kit, Mulch Kit (61” Only).

WALKER H24d

UDC Finance available - Find out more

SPECIFICATIONS & DOWNLOADS

Cutting Height:	Cutting Height: 1 to 5 in (2.5 to 13 cm) in 1/4 in (1 cm) Increments, 17 Positions. Recommended Cut Width: Side Discharge: 60 in. (152 cm), Rear Discharge: 52 to 64 in. (132 to 163 cm).
Deck Suspension	Torsion-Flex Frame with Caster Wheels and Counterweight Springs
Deck Adapter Kit	Deck Adapter Kit for fitting 36” to 74” decks. Part No. – 2430-10.
Engine	Manufacturer: Kohler. Model: KDW1003. Displacement: 1028 cc (62.7 cu. in.) Max Power: 23.7 HP @ 3600 RPM Max Torque: 36.8 ft-lbs
Ideal Application	Commercial Properties
Key Attributes	Efficient, high torque, high production.
Cooling System	Liquid & radiator.
Weight	Tractor Only: 997 lbs (452 kg) Tractor with R64 deck: 1434 lbs (650 kg)
Transmisson	Manufacturer/Model: Dual Independent Hydro-Gear ZT3400 Integrated Transaxles. Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position.
Speed	Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position.
Blade Drive	PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints. Blade Drive Clutch and Brake: Manual Belt Tightener Clutch and Band. Brake [Stops Blades within Five (5) Seconds of Disengagement].
Height	Tractor: 51.25 in (130 cm). Tractor with ROPS: 66.3 in (168 cm). Tractor with ROPS collapsed: 51.25 in (128 cm).
Width	Tractor Only (Outside Tire): 46.5 in (118 cm). Tractor with R64 deck: 66 in (168 cm). Tread Width: 36.5 in (93 cm).

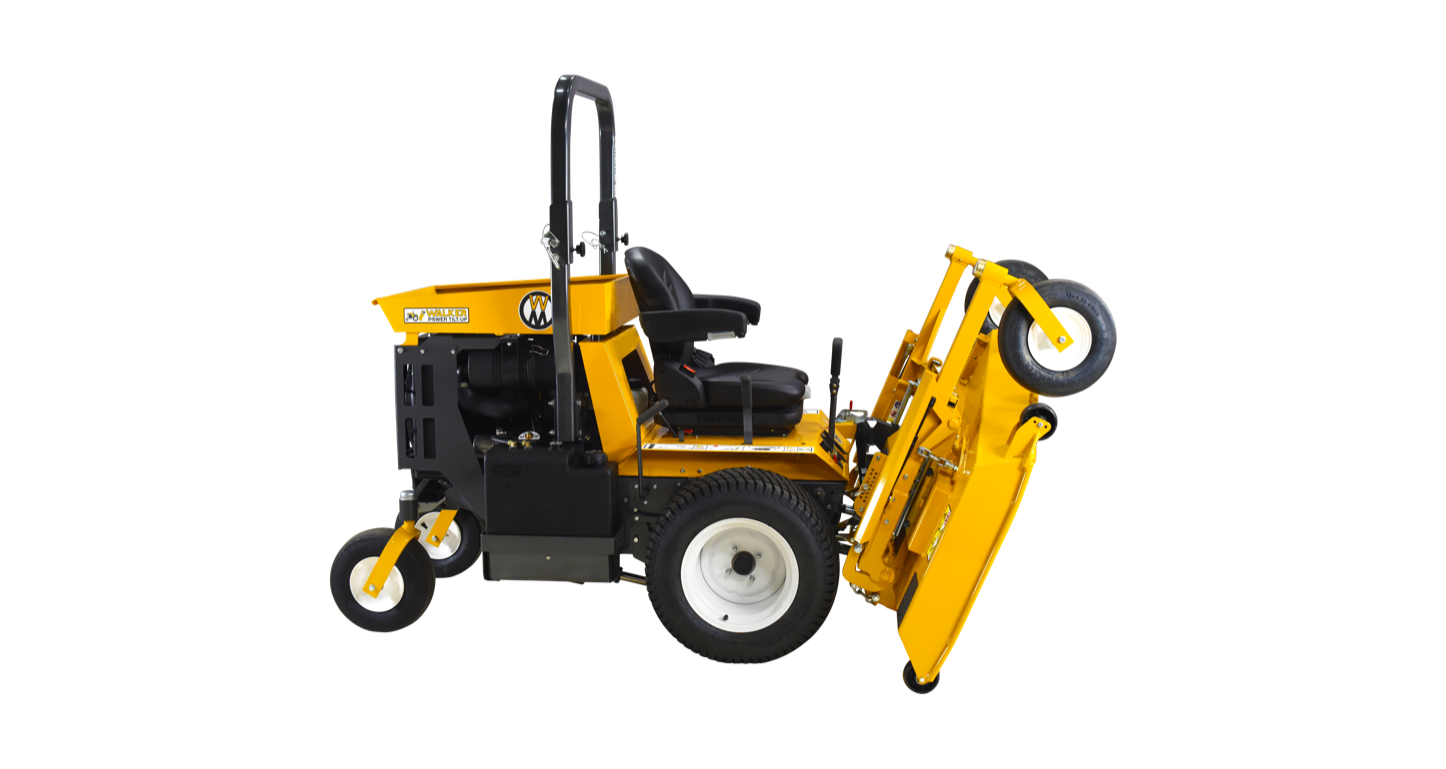

Length	Tractor Only: 69 in (175 cm). Tractor with R64 deck: 107.75 in (273.7 cm). Tractor with deck tilted: 87.75 in (223 cm). Tractor wheel base: 46.375 in (115 cm).
Mulch Kit	Part No. S2691-10. Fits 61” only on H24d models.
Light Kit	Part No. 5989-13
