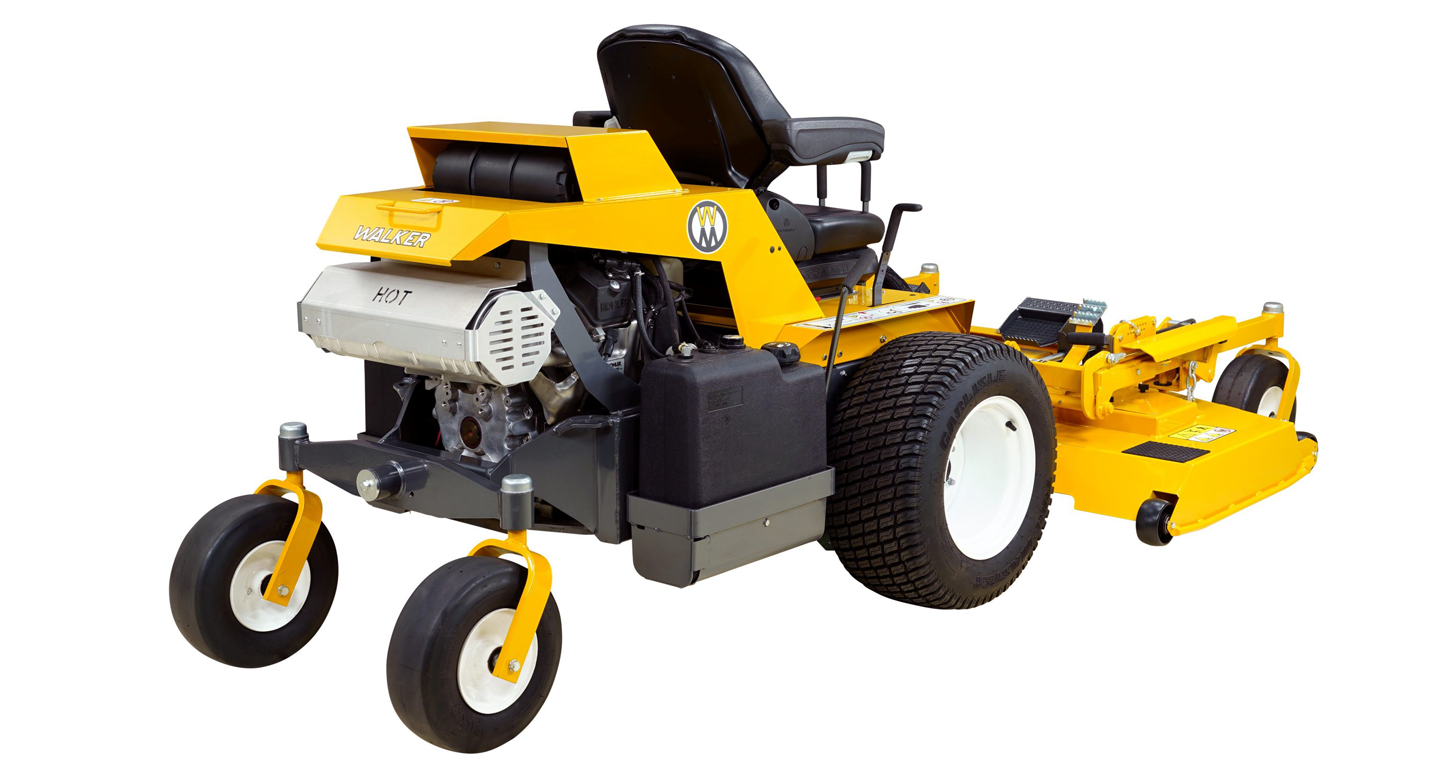

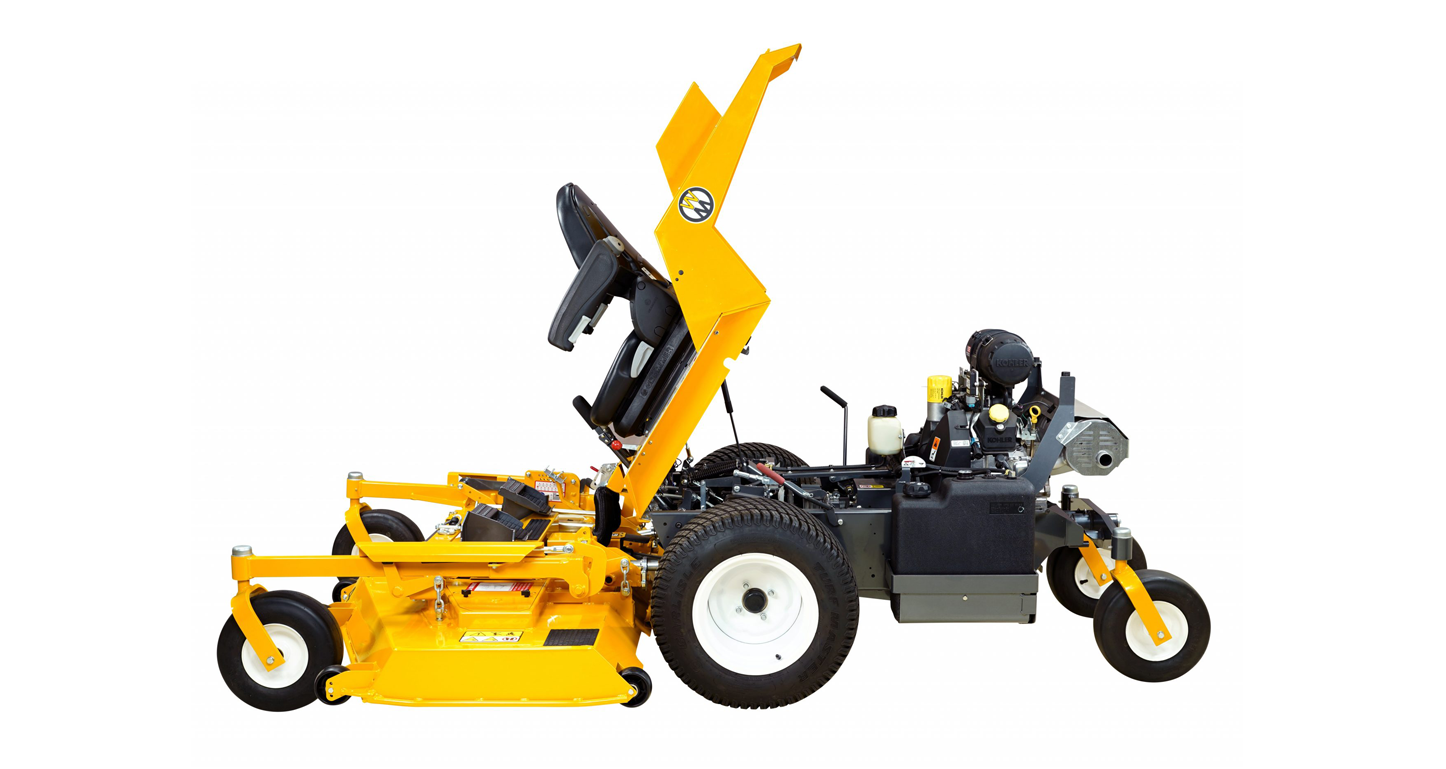

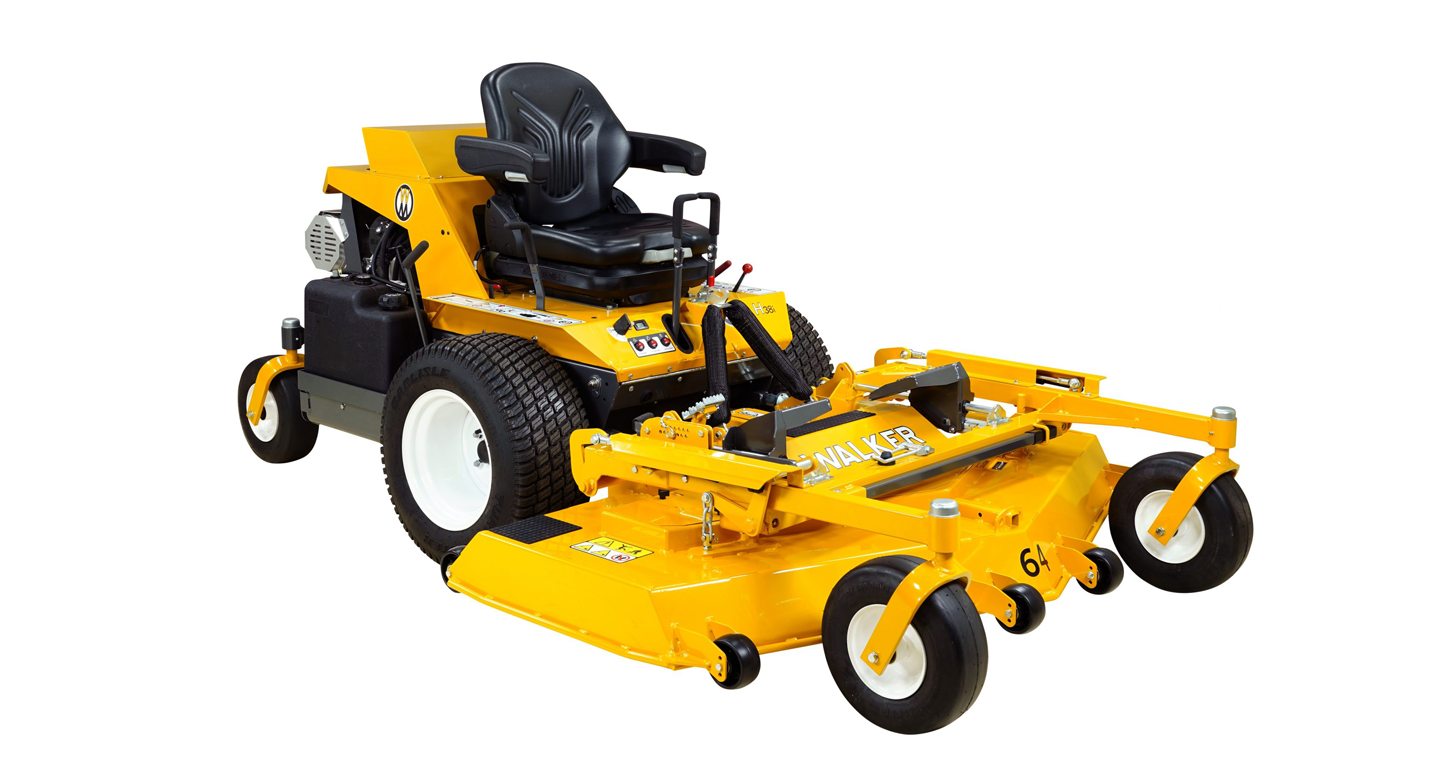

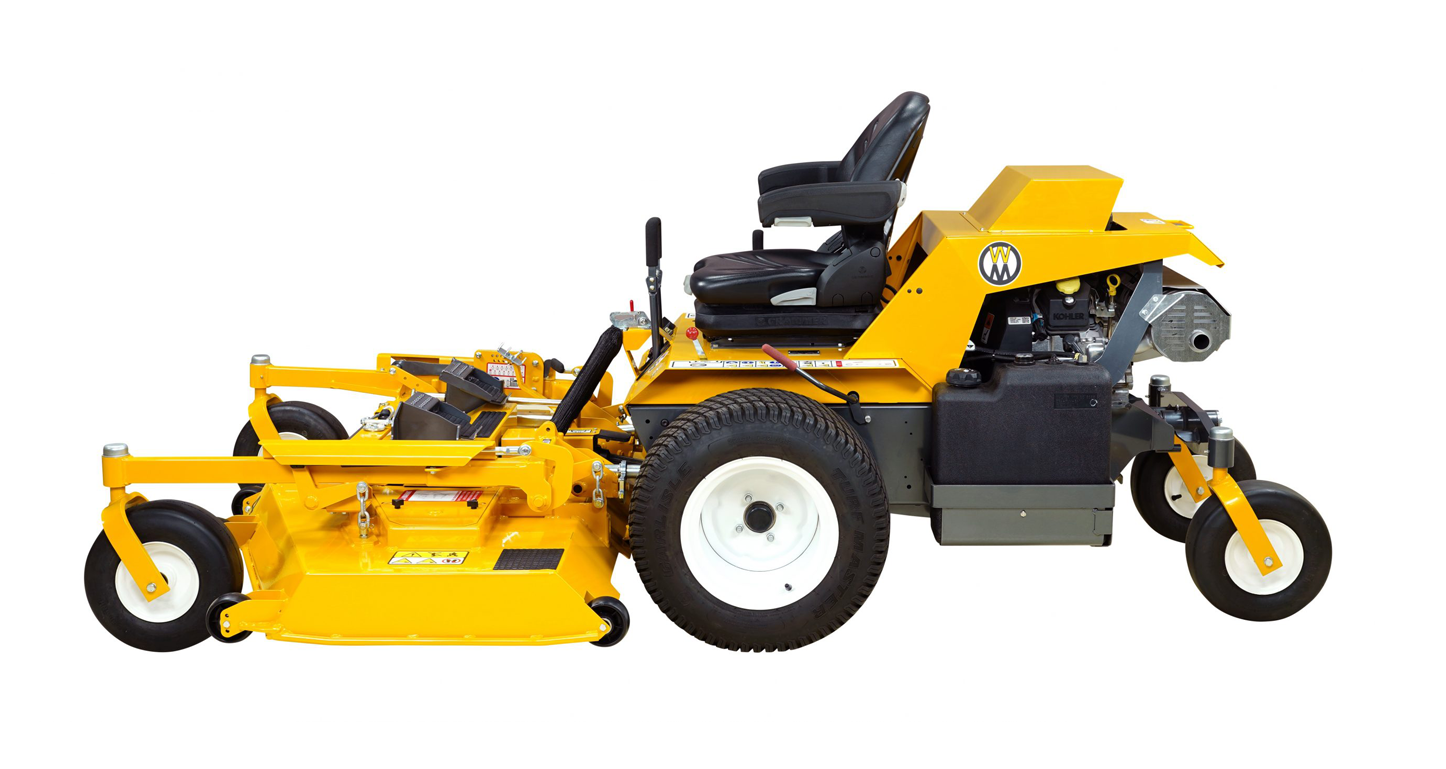

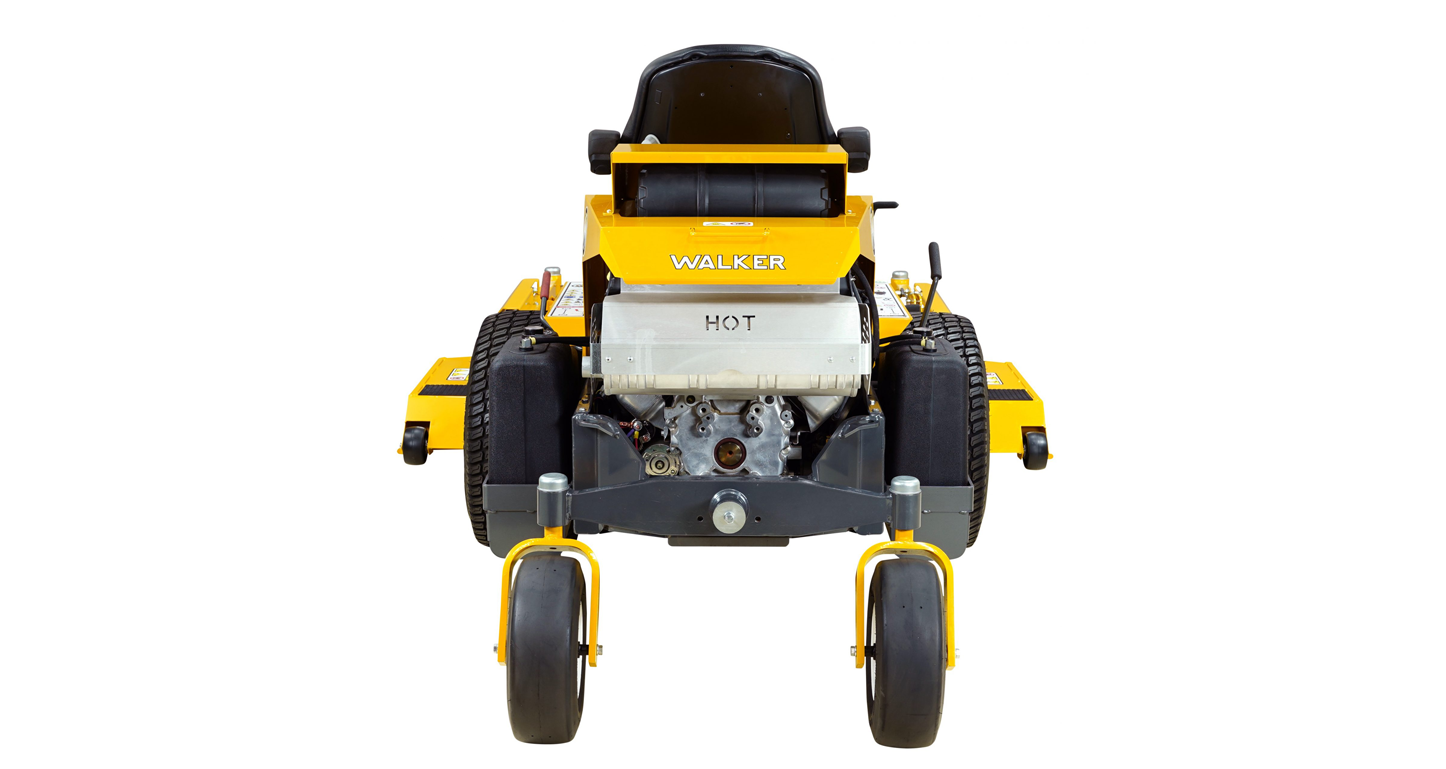

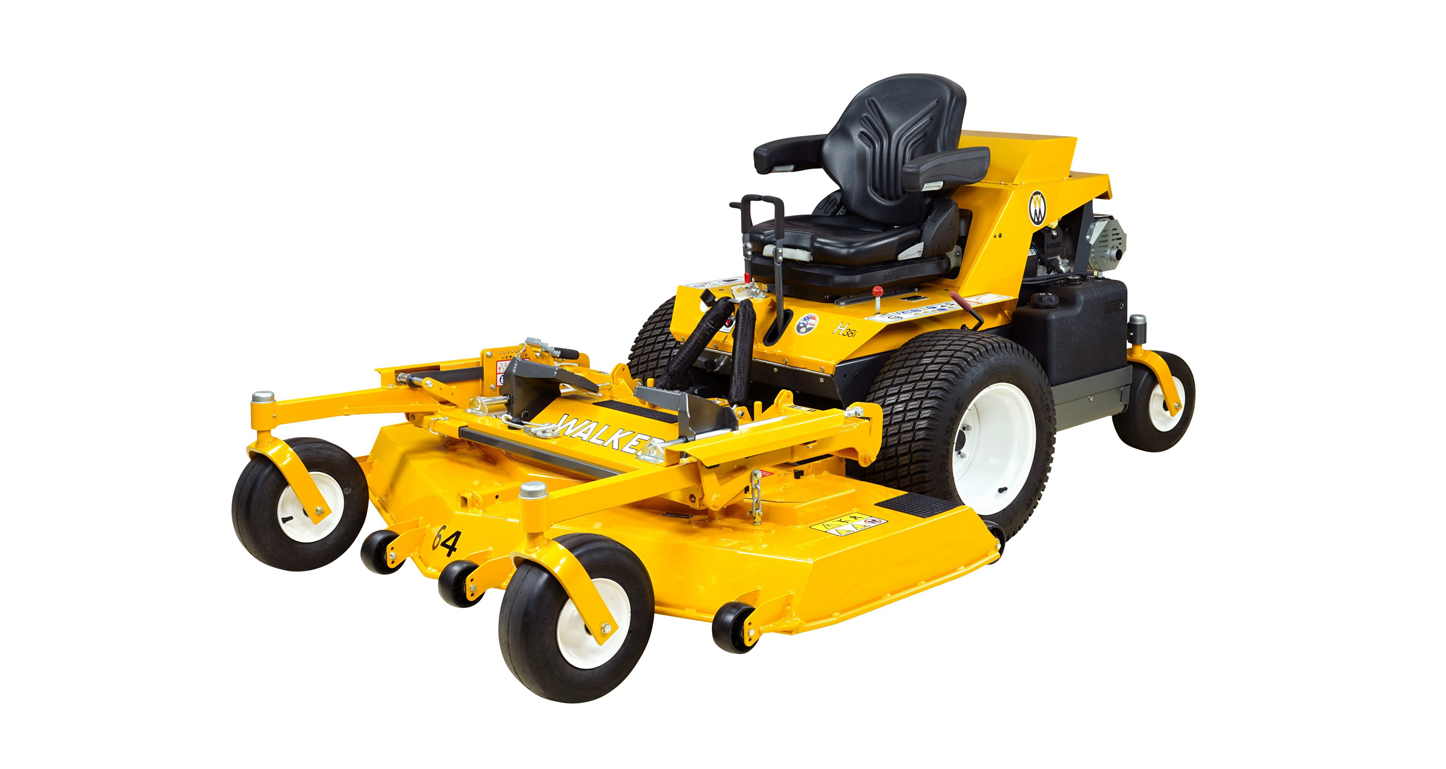

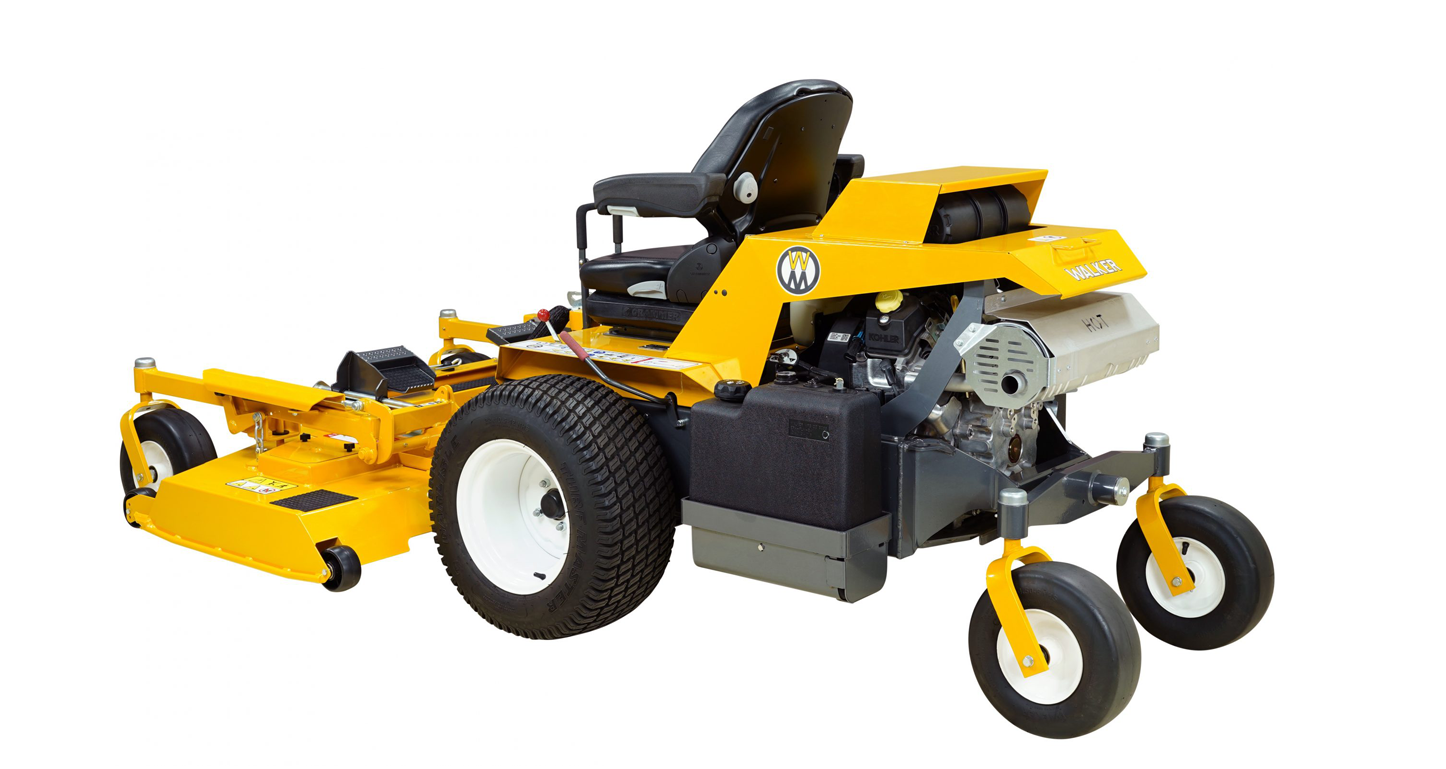

WALKER H38i

POA

NON-COLLECTION TRACTOR

The H38i is a powerful Walker Mower featuring 38 horsepower, Delphi® fuel injection, and impressive torque. This machine is capable of operating all of Walker’s biggest decks and attachments with ease. The H38i features a rear axle for superior handling at high speeds on rough ground. This, along with a 4-way adjustable Grammer suspension seat, provides personalized comfort keeping you productive on long days.

KEY FEATURES

Type: Non-Collection
Deck Options : 61” Side Discharge & 64” Rear Discharge
Power: 38 HP
Key Attributes: Efficient, Powerful, High Production
Engine: Kohler EFI
High Production Mowing
Popular Options & Accessories : Power Tilt-Up Kit, Light Kit, Deck Adapter Kit, Mulch Kit (61” Only)

WALKER H38i

UDC Finance available - Find out more

SPECIFICATIONS & DOWNLOADS

Cutting Height:	1 to 5 in (2.5 to 13 cm) in 1/4 in (1 cm) Increments, 17 Positions
Deck Suspension	Torsion-Flex Frame with Caster Wheels and Counterweight Springs
Deck Adapter Kit	Deck Adapter Kit for fitting 36” to 74” decks. Part No. – 2430-10.
Engine Model	Command Pro® ECH980, 2 Cyl., OHV, Gasoline (Air-Cooled), Electronic Fuel Injection (EFI)
Engine	Manufacturer: Kohler. Max Torque: 58 ft-lbs. Max Power: 38 HP @ 3600 RPM. Displacement: 999 cc (61 cu. in.).
Ideal Application	Commercial Properties
Key Attributes	Efficient, Powerful, High Production.
Cooling System	Air
Weight	Tractor Only: 808 lbs (366.5 kg) Tractor with R64 deck: 1239 lbs (562 kg)
Transmisson	Manufacturer/Model: Dual Independent Hydro-Gear ZT3400 Integrated Transaxles. Steering: Hand Lever Control, Individual Wheel. Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position.
Speed	Forward MPH (km/h): 0-10 MPH (0-16 km/h) Infinitely Variable
Blade Drive	Blade Drive Clutch and Brake: Manual Belt Tightener Clutch and Band. Brake [Stops Blades within Five (5) Seconds of Disengagement]
Height	Tractor: 46.5 in (118 cm).
Width	Tractor Only (Outside Tire): 46.5 in (118 cm). Tractor with R64 deck: 66 in (168 cm). Tread Width: 36.5 in (93 cm).
Length	Tractor Only: 69 in (175 cm). Tractor with R64 deck: 107 in (272 cm). Tractor with deck tilted: 87.75 in (223 cm). Tractor wheel base: 45.375 in (115 cm).
Mulch Kit	Part No. S2691-10. Fits 61” only on H38i models.
