Home / Recycling / DOPPSTADT SM 620.2 Wheeled Trommel

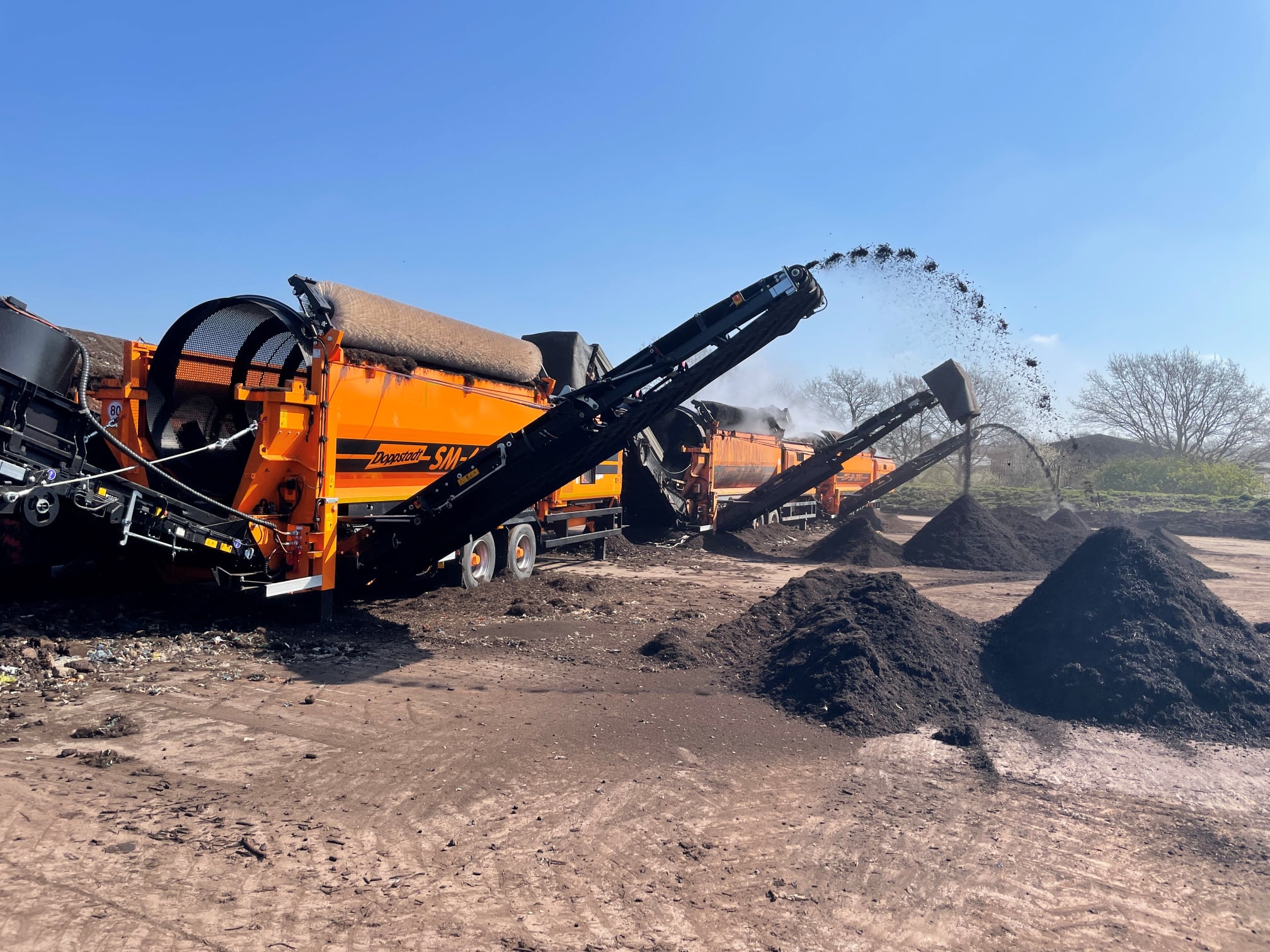

DOPPSTADT SM 620.2 Wheeled Trommel
DOPPSTADT SM 620.2 Wheeled Trommel
DOPPSTADT SM 620.2 Wheeled Trommel
DOPPSTADT SM 620.2 Wheeled Trommel
DOPPSTADT SM 620.2 Wheeled Trommel
DOPPSTADT SM 620.2 Wheeled Trommel
DOPPSTADT SM 620.2 Wheeled Trommel
DOPPSTADT SM 620.2 Wheeled Trommel
DOPPSTADT SM 620.2 Wheeled Trommel

DOPPSTADT SM 620.2 Wheeled Trommel

POA

The SM 620.2 shows real size as a universal screening machine and, with its high capacity, gets the most out of all recycling processes. It scores with economical consumption and low operating costs.

KEY FEATURES & BENEFITS

  • Quick-change system for the screen insert, operation with drum or 6 m² star screen insert possible
  • many options to adapt to different requirements
  • Electronically controlled load regulation for optimal screening results
  • large 5.0 m³ feed hopper with low loading sill (2.9 m)
  • economical diesel consumption, low operating costs, high throughput
  • Extensive standard safety equipment (e.g. protection against intrusion, emergency stop, machine monitoring)
  • EC street legal
  • Three additional hydraulic connections for the operation of numerous additional equipment

DOPPSTADT SM 620.2 Wheeled Trommel

UDC Finance available - Find out more

Categories: Wheeled, Doppstadt Trommel, Recycling, Trommel
Get a Quote Book a Demo

Specifications & Downloads

Download Tech Spec
  • Additional information

SPECIFICATIONS & DOWNLOADS

Total Weight

19,000 kg
Chassis

2-axle central axle trailer chassis for 80
km/h, as per StVZO (Road Traffic Licensing
Regulations), with ABS brake system
Engine Type

Diesel hydraulic
Power

85 kW (116 HP) at 1,800 rpm
Max Torque

1,600 rpm
Emissions Standard

Stage V / Tier 4f
Tank Capacity

300 l
Screening Drum

2 material fractions, Options: 3rd fraction
using rock screen or vibrating screen, 4th
fraction using rear belt air separator, 5th
fraction magnetic rollers
Drum Length

5,500 mm
Drum Diameter

2,000 mm
Drum Speed

0 – 21 rpm
Screening Area

30.2 m2
Feed Hopper

Volume: 5 m3
Width/Height: 3,750 / 2,900
Discharge Conveyor (* Optional)

Rear Belt
Length: 5,500 mm (3,000 *)
Width: 1,000 mm
Speed: 1.6m/s

Side Belt
Length: 5,500 mm
Width: 1,000 mm
Speed: 3.1m/s
