Home / Recycling / Doppstadt AK640 Wheeled

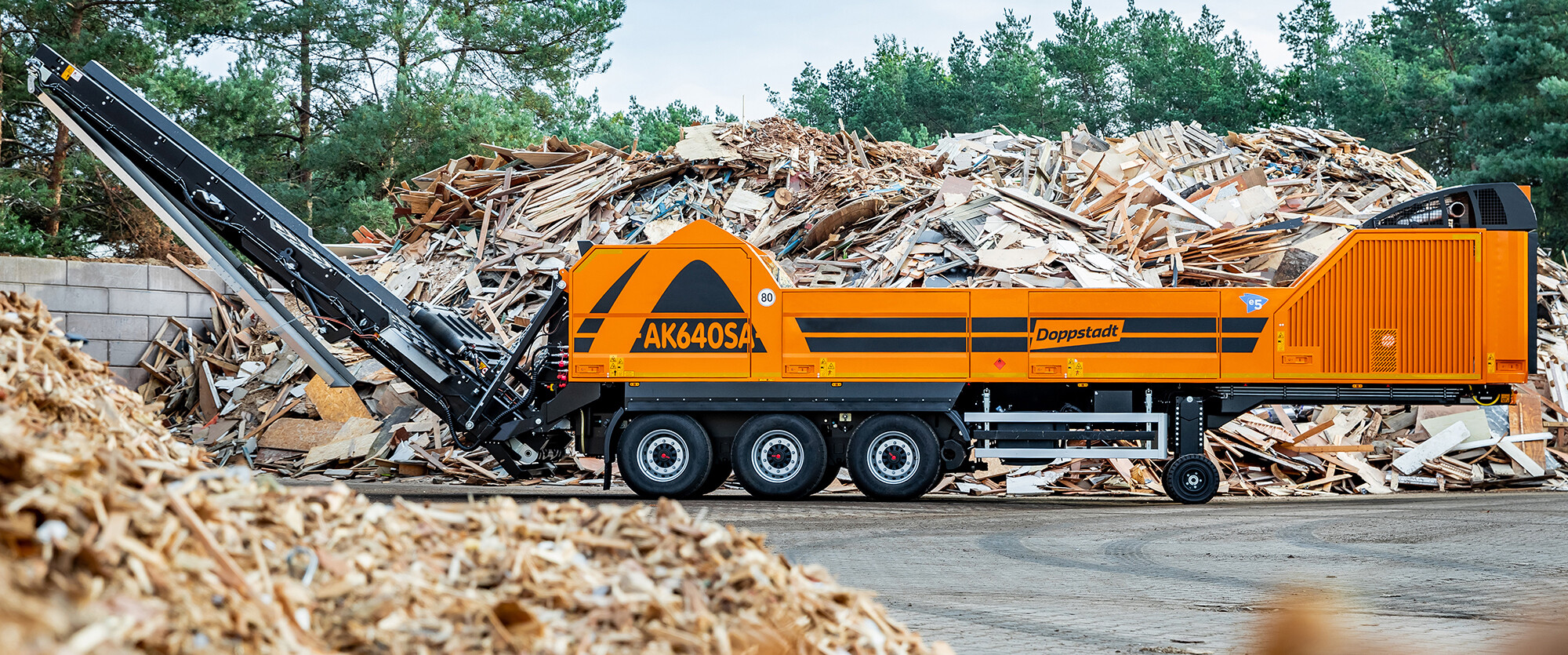

Doppstadt AK640 Wheeled
Doppstadt AK640 Wheeled

Doppstadt AK640 Wheeled

POA

The AK 640 SA is the flagship of the AK series and offers maximum throughput with its huge hopper and the latest engine technology. It is as transportable as the smaller models.

Key Features and Benefits:

  • Continuous shredding through load-controlled material intake, insensitive to impurities through freely swinging flails
  • Latest engine and exhaust technology, compliance with Stage V exhaust emission standard
  • Exhaust system made entirely of stainless steel
  • 6 m feed hopper
  • The 7.5 m long rear belt that can be lowered as standard (discharge height over 5 m) enables the shortest set-up times and maximum accessibility and ease of maintenance to the flail drum, tools or pushpit
  • Separate drive of scraper floor and oscillating feed roller for optimal material feed and high throughput
  • Free-swinging flails of the flail drum, with a centrifugal mass of approx. 2.5 t, have individually exchangeable flail tips, which are adapted to the specific material (e.g. hard metal or hard-faced tips)
  • Special baskets* with 3D technology for using old wood for more structure in the end product (*optional)

Doppstadt AK640 Wheeled

UDC Finance available - Find out more

Categories: Horizontal Grinders, Wheeled, Doppstadt Horizontal Grinders, Recycling
Get a Quote Book a Demo

Specifications & Downloads

Download Tech Spec
  • Additional information

SPECIFICATIONS & DOWNLOADS

Chassis

Semi-trailer

Total Weight

32,000 kg

Dimensions

Length: 17380 mm
Width: 2530 mm
Height: 5350 mm

Transport:
Length: 11990 mm
Width: 2530 mm
Height: 3650 mm

Engine Type

Diesel Engine

Discharge Conveyor

Width: 1500 mm
Length: 7500 mm
Height: 5350 mm
Speed: 2

Flail Drum

Width: 1750
Diameter: 1120
Rotation Speed: 970-1140 rpm (Depending on engine speed)
Number of Flails/Teeth: 36

Feed Hopper

Fill Width: 5720 mm
Loading Height: 2420 mm
Infeed Height: 538 mm
