Home / Recycling / DOPPSTADT AK 315 Wheeled Horizontal Grinder

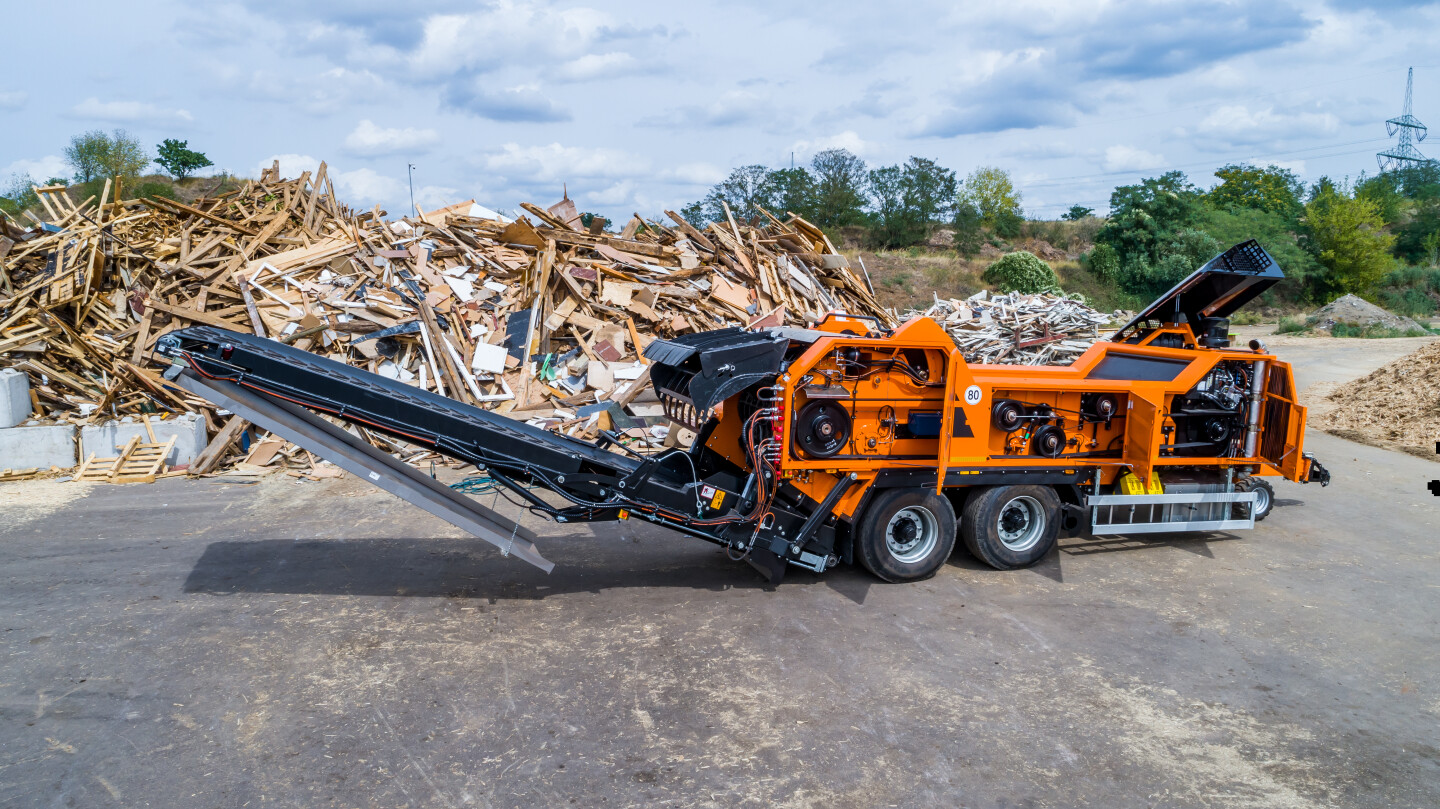

DOPPSTADT AK 315 Wheeled Horizontal Grinder
DOPPSTADT AK 315 Wheeled Horizontal Grinder
DOPPSTADT AK 315 Wheeled Horizontal Grinder
DOPPSTADT AK 315 Wheeled Horizontal Grinder
DOPPSTADT AK 315 Wheeled Horizontal Grinder

DOPPSTADT AK 315 Wheeled Horizontal Grinder

POA

As the smallest mobile shredder in the AK series, the AK 315 can be used for almost all shredding tasks. The new MTU engine with 230 KW even meets the latest Stage V emissions standard.

KEY FEATURES & BENEFITS

  • Latest engine and exhaust technology, compliance with Stage V exhaust emission standard, exhaust system made entirely of stainless steel, encased with high-quality integral insulation.
  • Freely swinging flails of the flail drum, with a centrifugal mass of approx. 1.3 t, have individually exchangeable flail tips, which are adapted to the specific material (e.g. hard metal or hard-faced tips).
  • Insensitive to impurities thanks to freely swinging flails, continuous shredding thanks to load-controlled material intake.
  • Lowerable rear belt for the shortest set-up times and maximum accessibility and ease of maintenance to the flail drum, tools or pushpit.
  • Rear belt length 6m.
  • Interchangeable fine shredding basket*, the material grain size is determined by the mesh width (30 – 320 mm), special baskets* with 3D technology for the use of waste wood for more structure in the end product (*optional).
  • Ideal for smaller systems.

DOPPSTADT AK 315 Wheeled Horizontal Grinder

UDC Finance available - Find out more

Categories: Horizontal Grinders, Wheeled, Doppstadt Horizontal Grinders, Recycling
Get a Quote Book a Demo

Specifications & Downloads

Download Tech Spec
  • Additional information

SPECIFICATIONS & DOWNLOADS

Chassis

2-axle trailer

Total Weight

16,000 kg

Dimensions

Length: 12890 mm
Width: 2130 mm
Height: 3550 mm

Transport
Length: 9240 mm
Width: 2130 mm
Height: 3080 mm

Engine Type

Diesel Engine

Emissions Standard

Stage V, EPA Tier 4f, EIIIA

Motor Power

230 / 310

Tank Capacity

300

Torque

1300, 1250 (EIIIA) at 1200-1600 rpm

Discharge Conveyor

Width: 1500 mm
Length: 6000 mm
Height: 3550 mm*
Speed: 2 m/s

Flail Drum

Width: 1470 mm
Diameter: 900 mm
Rotational Speed: 1140 – 1320 RPM (Depending on engine speed)
Number of Flails/Teeth: 16/28

Feed Hopper

Fill Width: 2730 mm
Loading Height: 2050 mm
Infeed Height: 421 mm
