Home / Mining, Quarry & Aggregates / Crushing / POWERSCREEN Trakpactor 290 & 290SR

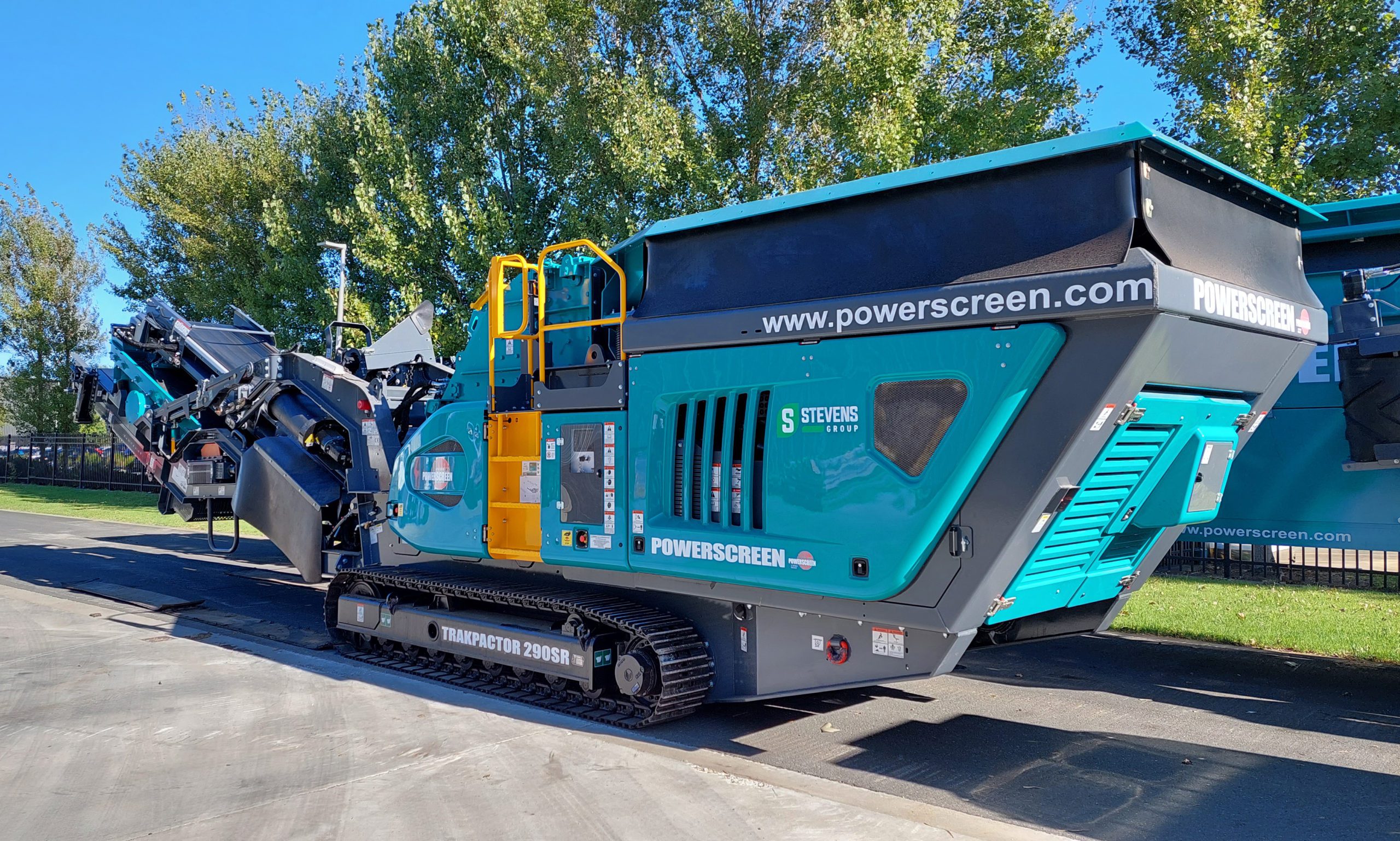

POWERSCREEN Trakpactor 290 & 290SR
POWERSCREEN Trakpactor 290 & 290SR
POWERSCREEN Trakpactor 290 & 290SR
POWERSCREEN Trakpactor 290 & 290SR
POWERSCREEN Trakpactor 290 & 290SR
POWERSCREEN Trakpactor 290 & 290SR
POWERSCREEN Trakpactor 290 & 290SR
POWERSCREEN Trakpactor 290 & 290SR

POWERSCREEN Trakpactor 290 & 290SR

POA

The Powerscreen Trakpactor 290 & 290SR Impact Crushers performs in the most challenging applications, such as construction and demolition, asphalt, concrete, and natural rock. The integrated system ensures the required product specification is achieved with oversized material either recirculated back to the crusher or stockpiled.

The machine sets up rapidly and is simple to operate. The compact size also provides extreme ease of transportation, making this portable crusher an ideal solution for remote job sites.

FEATURES & BENEFITS

  • Suitable for a variety of feed materials.
  • Ideal for recycling & demolition applications.
  • Fully enclosed hopper to eliminate spillage.
  • Integrated pre-screen for fines removal (Punch plate, grizzly bars & Blanking plate are all interchangeable).
  • Feeder speed automatically regulates depending on engine load.
  • Proven Terex impact crusher with hydraulic overload protection, 4 bar rotor & twin aprons.
  • Simple intuitive push button operation.
  • HPTO clutch & highly fuel efficient direct drive system.
  • Modular conveyor with raise/lower facility to aid clearance of rebar.
  • Overband magnet (Optional).

POWERSCREEN Trakpactor 290 & 290SR

UDC Finance available - Find out more

Categories: Impact Crusher, Crushing, Mining, Quarry & Aggregates
Get a Quote

Specifications & Downloads

Download Product Brochure
  • Additional information

SPECIFICATIONS & DOWNLOADS

Output Potential

Up to 290 Tonnes Per Hour.

Hopper

Wear-Resistant Feed Hopper.
Capacity: 3.3m³
Length: 3.8m
Width: 2m

Feeder

Vibrating Grizzly Feeder.
Length: 3.8m
Screen Size: 1500mm x 950mm

Crusher

Feed Opening: 1030mm x 790mm
Rotor Speeds: 630 – 800rpm
Min. CSS: 20mm (Lower Apron)
Min. CSS: 50mm (Upper Apron)
Hydraulic Overload Protection.

Product Conveyor

Width: 1000mm
Discharge Height: 3.42m

Recirculating Conveyor (290SR)

Width: 500mm
Discharge Height in Stockpile Mode: 3.2m

Post-Screen (290SR)

Top Deck Size: 2.74m x 1.5m

Fines Conveyor (290SR)

Width: 1200mm
Discharge Height: 3m

Weight

28,700kg (290)
34,200kg (290SR)

Working Dimensions

(290)
Working Width: 5.22m
Working Length: 12.6m
Working Height: 3.7m

(290SR)
Working Width: 5.22m
Working Length: 14.66m
Working Height: 4.12m

Transport Dimensions

(290)
Transport Width: 2.55m
Transport Length: 9.97m
Transport Height: 3.16m

(290SR)
Transport Width: 2.9m
Transport Length: 14.76m
Transport Height: 3.18m

Applications

Blasted Rock
River Rock
C & D Waste
Foundry Waste
Processed Ores
Processed Minerals
