Home / Mining, Quarry & Aggregates / Crushing / POWERSCREEN Trakpactor 260 & 260SR
POWERSCREEN Trakpactor 260 & 260SR
POWERSCREEN Trakpactor 260 & 260SR
POWERSCREEN Trakpactor 260 & 260SR
POWERSCREEN Trakpactor 260 & 260SR
POWERSCREEN Trakpactor 260 & 260SR
POWERSCREEN Trakpactor 260 & 260SR
POWERSCREEN Trakpactor 260 & 260SR
POWERSCREEN Trakpactor 260 & 260SR
POWERSCREEN Trakpactor 260 & 260SR

POWERSCREEN Trakpactor 260 & 260SR

POA

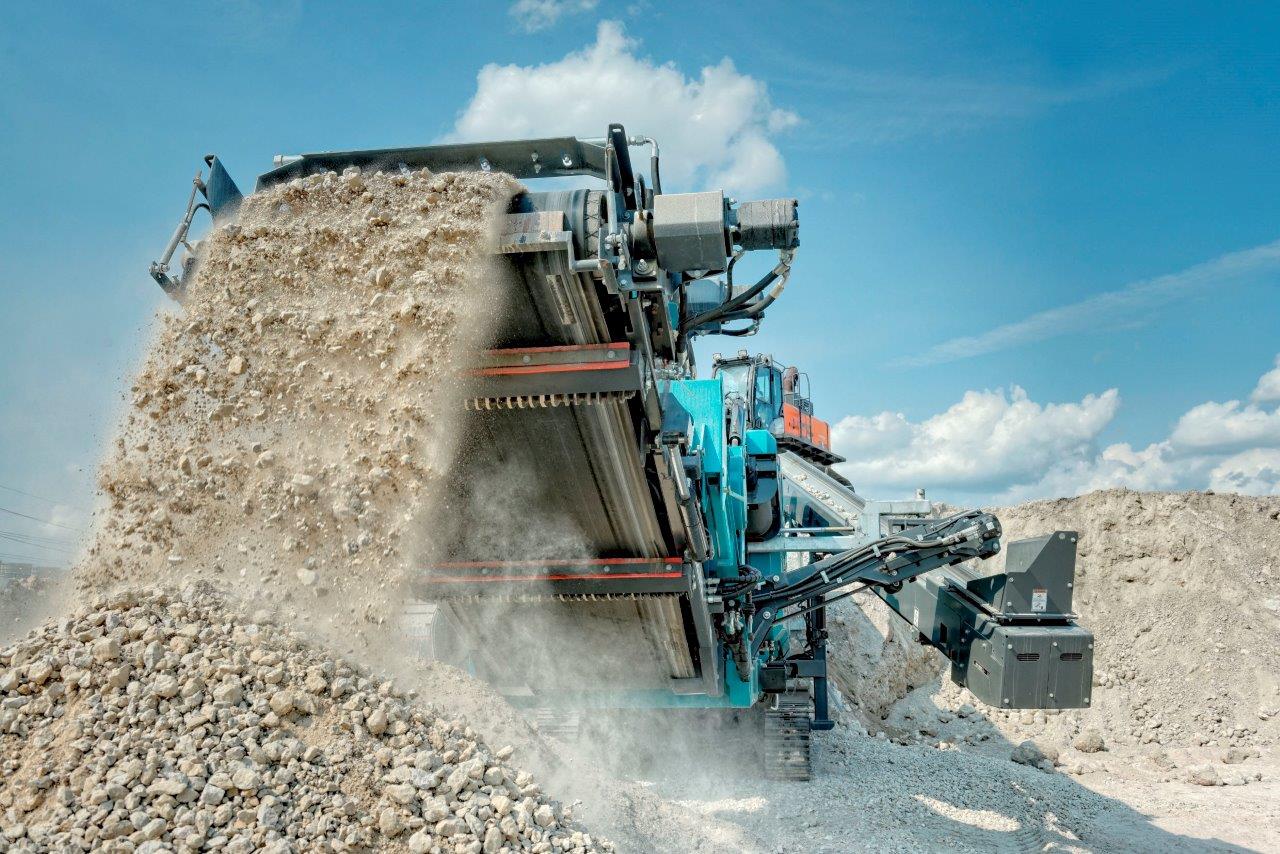

The Powerscreen Trakpactor 260 and 260SR horizontal shaft impactors are compact track mobile crushers designed for the recycling and demolition markets. Capable of processing a wide range of material at a high output, these plants are versatile, easy to operate and fuel-efficient due to their direct drive system.

Both plants offer users both excellent reduction and high consistency of product shape alongside key features such as hydraulic overload protection.

The Powerscreen Trakpactor 260SR features a post-screen system and recirculating conveyor that allows oversize material to be passed back to the crusher for further sizing. A quick-detach single deck post-screen system allows the machine to convert to a standard Trakpactor 260 in minutes.

FEATURES & BENEFITS

  • Proven impact crusher with hydraulic overload protection.
  • Suitable for a variety of feed materials.
  • Ideal for recycling & demolition applications.
  • Replaceable tine bar cartridge-style grizzly feeder.
  • Load management system to control feeder speed.
  • Proven Terex impact crusher with hydraulic overload protection, 4 bar rotor & twin aprons.
  • Crusher speed variation through user-friendly PLC control system.
  • HPTO clutch & highly fuel efficient direct drive system.
  • Modular conveyor with raise/lower facility to aid clearance of rebar.

POWERSCREEN Trakpactor 260 & 260SR

UDC Finance available - Find out more

Categories: Crushing, Mining, Quarry & Aggregates, Impact Crusher
Get a Quote

Specifications & Downloads

Download Product Brochure
  • Additional information

SPECIFICATIONS & DOWNLOADS

Hopper

Capacity: 2.3m³
Width: 2.18m

Feeder

Vibrating Pan Feeder.
Length: 3.27m
Width: 800mm

Crusher

Twin Apron, 4-Bar Impact Crusher.
Feed Opening: 860mm x 610mm
Min. CSS: 40mm (Upper Apron)
Min. CSS: 20mm (Lower Apron)

Product Conveyor

Width: 900mm
Discharge Height: 3.25m
Dust Suppression.

Bypass Conveyor (Option)

Width: 500mm
Discharge height: 2.03m

Recirculating Conveyor (260SR)

Width: 500mm

Post-Screen (260SR)

Single-Deck Screenbox.
Length: 2.44m
Width: 1.2m

Fines Conveyor (260SR)

Width: 900m
Discharge Height: 3.25m
Dust Suppression.

Weight

27,000kg (260 with Bypass Conveyor & Magnet)
33,950kg (with Bypass Conveyor & Magnet)

Working Dimensions

260
Width: 4m (With Bypass Conveyor)
Length: 13.4m
Height: 3.6m
260SR
Width: 5.5m
Length: 15.8m
Height: 3.86m

Transport Dimensions

260
Width: 2.5m
Length: 13.4m
Height: 3.2m
260SR
Width: 3m
Length: 14.8m
Height: 3.2m

Applications

Blasted Rock
River Rock
C & D Waste
Foundry Waste
Processed Ores
Processed Minerals
