POWERSCREEN Trakpactor 230 & 230SR

POA

The Powerscreen Trakpactor 230 is a compact impact crusher which has been designed to offer both excellent reduction and high consistency of product yield. With its compact design and ease of mobility, the Trakpactor 230 is primarily suited to recycling, demolition and mining applications.

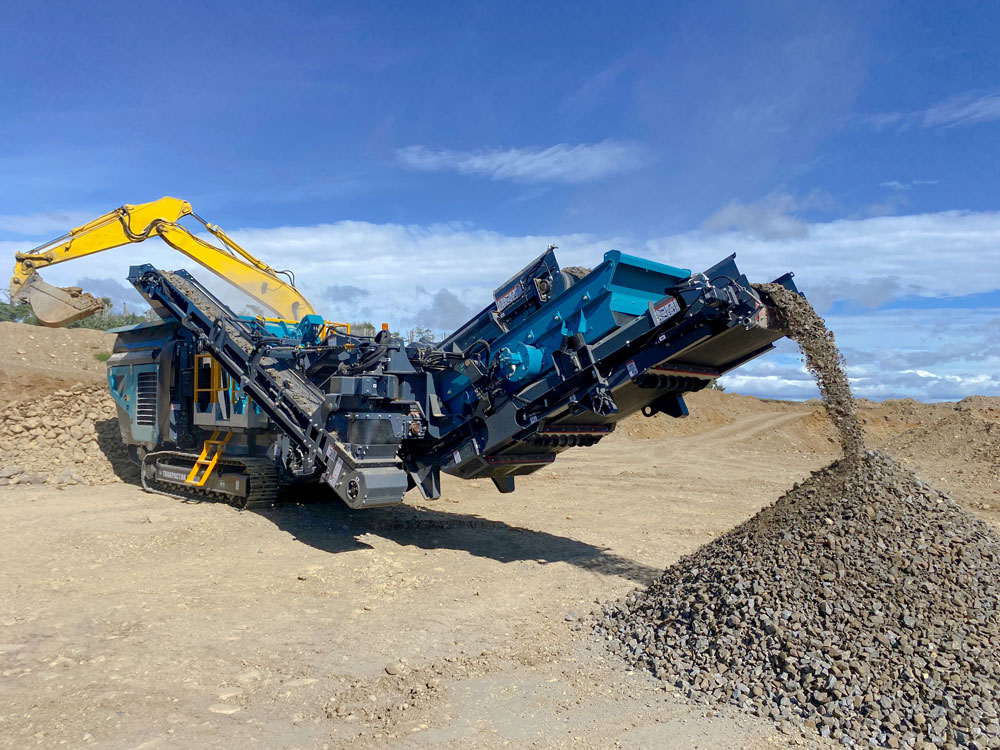

Trakpactor 230SR is a mirror of the Trakpactor 230 with the inclusion of a post-screen system and recirculating conveyor allowing oversize material to be passed back to the crusher or further sizing.

FEATURES & BENEFITS

Proven impact crusher with hydraulic overload protection
Fully enclosed hopper to eliminate spillage
HPTO clutch & highly fuel efficient direct drive system

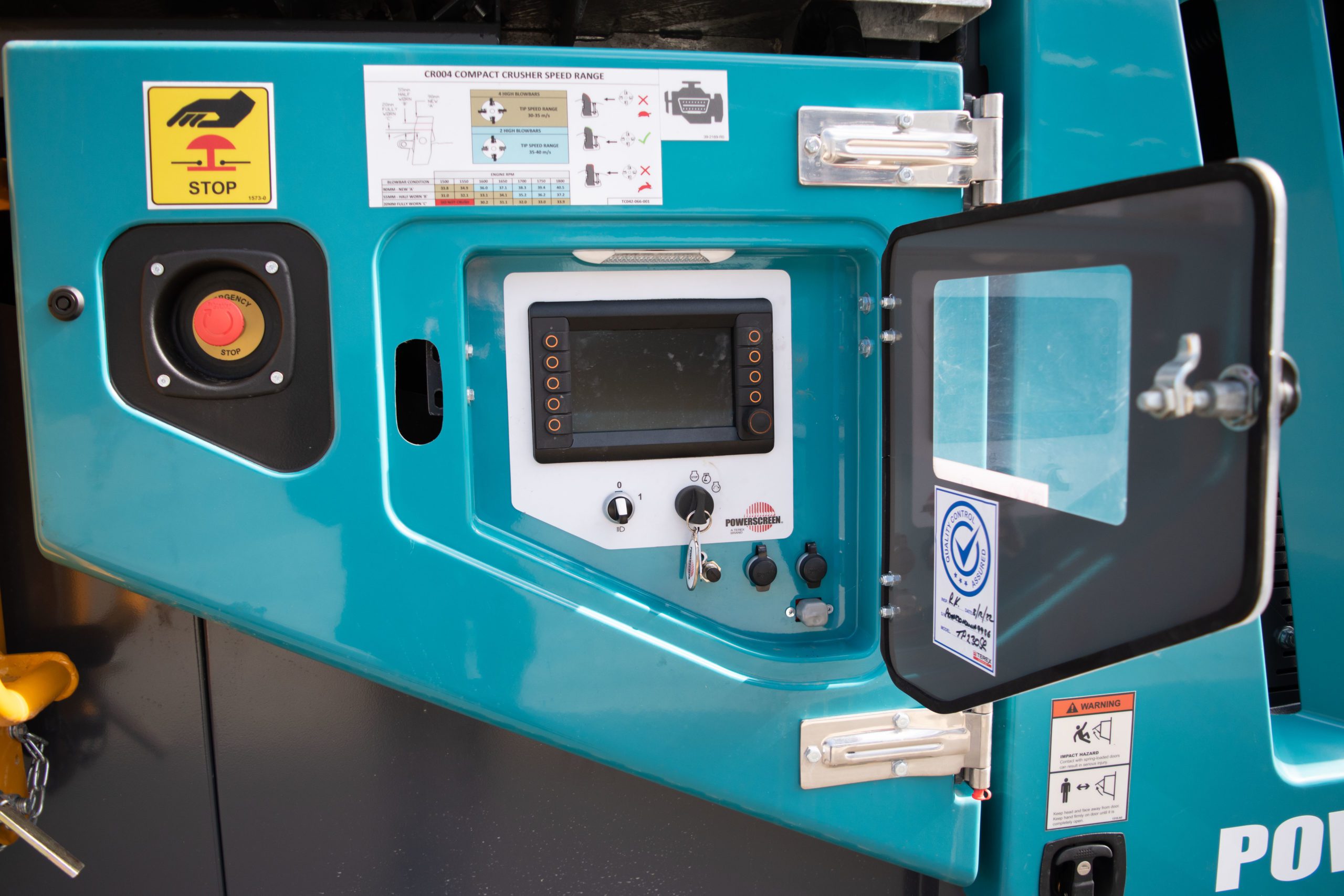

Powerscreen Pulse intelligent monitoring as standard
Suitable for a range of different feed materials
Comprehensive list of custom options are available to meet the exact crushing requirements of each customer
Excellent, unrestricted access to all key maintenance points
Product conveyor can be lowered during operation to avoid blockages and can be removed when servicing

POWERSCREEN Trakpactor 230 & 230SR

UDC Finance available - Find out more

SPECIFICATIONS & DOWNLOADS

Output	Up to 250 Tonnes Per Hour.
Hopper	Capacity: Up to 2.6m³ Length: 3.6m Width: 2m
Feeder	Vibrating Grizzly Feeder Screening Area: 1080mm x 810mm Length: 3.6m
Crusher	Twin Apron, 4-Bar Impact Crusher. Feed Opening: 860mm x 720mm Min. CSS: 40mm (Upper Apron) Min. CSS: 20mm (Lower Apron)
Product Conveyor	Width: 900mm Discharge Height: 3m
Bypass Conveyor (Option)	Width: 500mm Discharge Height 2.4m Hydraulically Folds for Transport
Post Screen (230SR)	Single Deck Screenbox Top Deck: 2.44m x 1.2m Drive: Hydraulic Motor
Recirculating Conveyor (230SR)	Width: 500mm Discharge Height: 3.1m
Fines Conveyor (230SR)	Width: 1000mm Discharge Height: 2.5m
Weight	24,00kg (230 Tier 4F – Standard Unit) 29,300kg (230SR Tier 4F – Standard Unit)
Working Dimensions	Width: 5.13m Length: 11.37m, 13.3m (230SR) Height: 3.26m, 3.8m (230SR)
Transport Dimensions	Width: 2.5m, 2.54m (230SR) Length: 9.3m, 13.3m (230SR) Height: 3m
Applications	Blasted Rock River Rock C & D Waste Foundry Waste Processed Ores Processed Minerals
